Glass Bottle Beer Filling Machine (3 in 1)

This Beer Filling Machine Wash-filling-capping 3-in-1unit is used to produce glass bottled beer. The BXGF Wash-filling-capping 3-in-1unit:beer Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.


Product Detail

Production Description

1. Washing Part:
● Except the down framework, the transmission parts and some parts that must be made of special materials. Other parts are all made of stainless steel 304.
● The roller bearing is made of stainless steel, the sealing ring is made of ●EPDM material, and plastic is made of UMPE.
● The gripper is made of stainless steel, the position where hold the bottleneck is made of food standard rubber;
● Rinsing time can be guaranteed for 4 seconds.

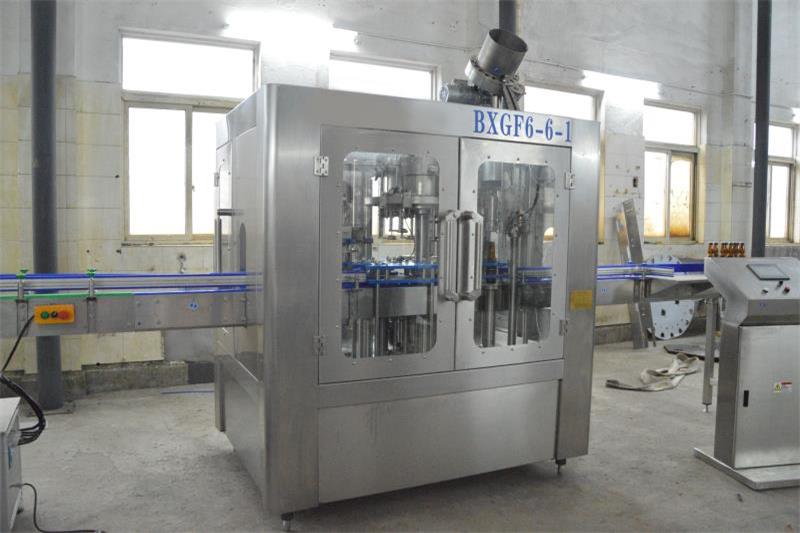

DSC_0377

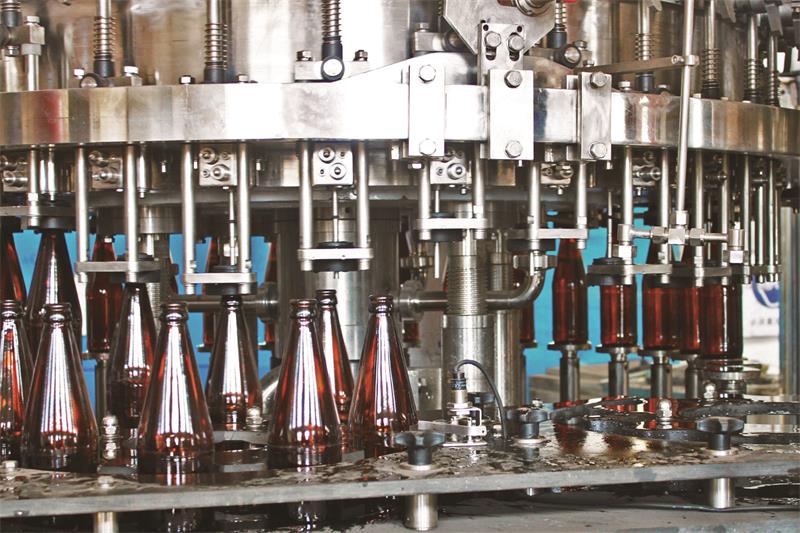

Beer filling machine (2)

2. Filling part:
● Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.
● Long-tube filling valves are adopted, with CO2 fully exchanging with air inside glass bottles, to decrease the rinsing of oxygen effectively. with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.

Filler & Capping Machine drive system mainly consists of:

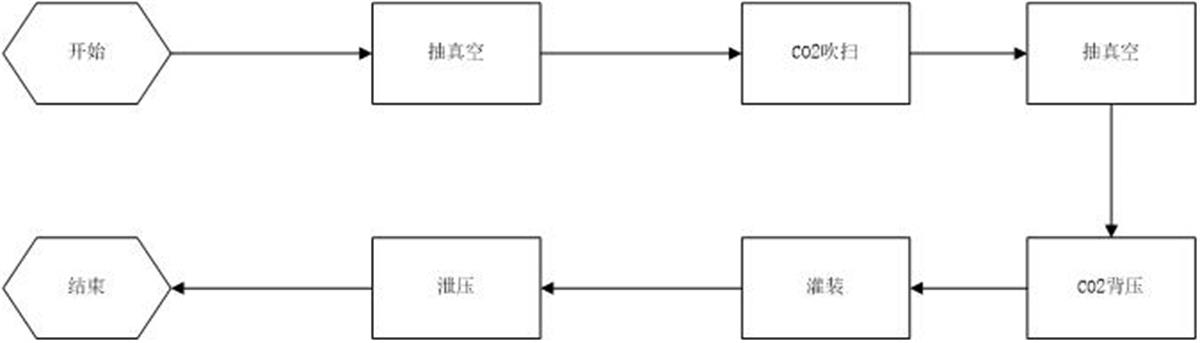

Filling valve Internal isobar filling valve Working flowchart

Beer filling machine (3)

3. Capping part:
● Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
● Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
● The capper is equipped with inlet bottle detection switch.
● Centrifugal way of cap arranging is adopted to reduce damage of caps.

Parameter

BXGF SERIES TRIBLOC RINSER FILLER CROWNER

● Suitable to filling: beer bottles filling, crown caps

● Container: 150ml to 1000ml glass bottles

● Filling Capacity: 1,000~12,000 bottler per hour

● Filling Style: isobar filling

● Filling Temperature: 0-4°C （cold filling ）

● Adopted 2 times deoxygenating system

● Crown Caps Capping System

● PLC control, full-automatic working

● Inverter adjustor, filling speed adjustable

● No bottles no filling, clash bottles auto remove, no bottle no capping

Model

Washing Heads

Filling Nozzle

Capping Heads

Dimension mm

Power kw

Capacity BPH

BXGF 6-6-1

6

6

1

1750*1600*2350

1.2

500

BXGF 16-12-6

16

12

6

2450*1800*2350

2

3000

BXGF 24-24-6

24

24

6

2780*2200*2350

3

6000

BXGF 32-32-10

32

32

10

3600*2650*2350

4.7

8000

BXGF 40-40-10

40

40

10

3800*2950*2350

7.5

12000

BXGF 50-50-12

50

50

12

5900*3300*2350

9

15000

Configuration List

No Name Brand
1 Main motor ABB
2 Cap unscrambler motor FEITUO(China)
3 Conveyor motor FEITUO(China)
4 Rinsing pump CNP (China)
5 Solenoid valve FESTO
6 Cylinder FESTO
7 Air-T contactor FESTO
8 Pressure adjust valve FESTO
9 Inverter MITSUBISHI
10 Power switch MIWE(TAIWAN)
11 Contactor SIEMENS
12 Relay MITSUBISHI
13 Transformer MIWE(TAIWAN)
14 Approx switch TURCK
17 PLC MITSUBISHI
18 Touch screen Pro-face
19 Air components FESTO
20 AC Contactor Schneider
21 Micro relay MITSUBISHI

Why Choose Us

1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 6000m2, with independent property rights.

2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.

3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.

4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.

5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.

6. We will supply the spare parts fast and with cost price.
